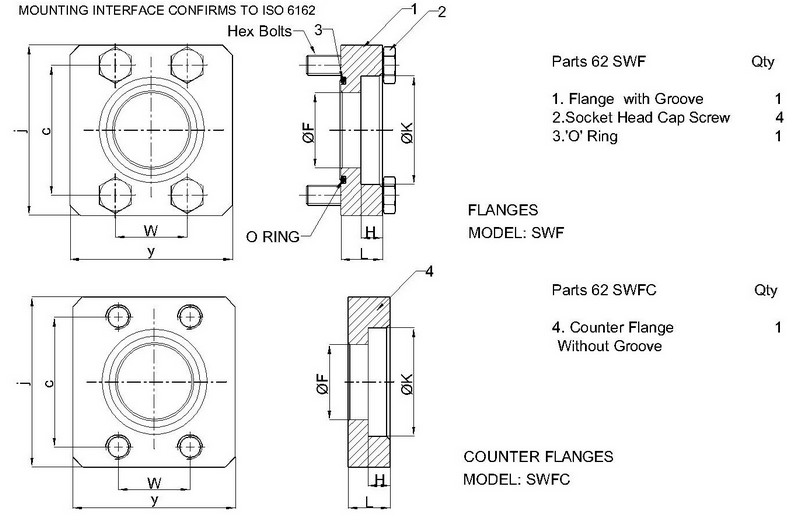

| Flange | Counter Flange | Nom Flange Size | PN Bar | y | j | c | w | ØF | H | ØK | L | 'O' Ring | Cap Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 62SWF-21.3 | 62SWFC-21.3 | 1/2" | 400 | 48 | 56 | 40.5 | 18.2 | 13 | 13 | 21.8 | 23 | 19.00 x 3.55 | M8X35 |
| 62SWF-26.6 | 62SWFC-26.6 | 3/4" | 400 | 60 | 71 | 50.8 | 23.8 | 19 | 13 | 27.0 | 25 | 25.0 X 3.55 | M10X40 |
| 62SWF-33.4 | 62SWFC-33.4 | 1" | 400 | 70 | 81 | 57.2 | 27.8 | 25 | 13 | 33.7 | 27 | 32.5 X 3.55 | M12X45 |
| 62SWF-42.2 | 62SWFC-42.2 | 1.1/4" | 400 | 78 | 95 | 66.6 | 31.8 | 32 | 13 | 42.6 | 32 | 37.5 X 3.55 | M12X50 |
| 62SWF-48.3 | 62SWFC-48.3 | 1.1/2" | 400 | 95 | 113 | 79.3 | 36.5 | 38 | 13 | 48.7 | 36 | 47.5 X 3.55 | M16X60 |
| 62SWF-60.3 | 62SWFC-60.3 | 2" | 400 | 114 | 133 | 96.8 | 44.5 | 50 | 16 | 61.2 | 45 | 56.0 X 3.55 | M20X75 |
| 62SWF-73.0 | 62SWFC-73.0 | 2.1/2" | 400 | 149 | 175 | 123.8 | 58.7 | 60 | 16 | 73.9 | 52 | 69.0 X 3.55 | M22X85 |
| 62SWF-88.9 | 62SWFC-88.9 | 3" | 400 | 178 | 216 | 152.4 | 71.4 | 75 | 16 | 89.9 | 65 | 85.0 X 3.55 | M30X110 |
